CNC milling machines

Check out our CNC milling machines, which feature unique and innovative engineering technology to help you create in our workshops and labs.

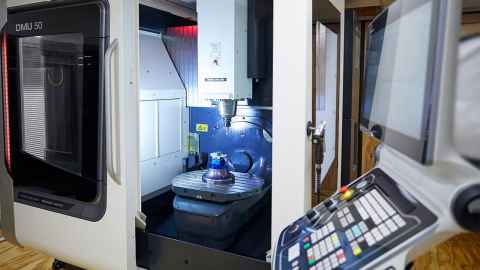

Five axes CNC milling machine: DMG MORI DMU 50

The five axes CNC (computer numerical controlled) milling machine DMU 50 offers the latest technology in the workshop/training/laboratory and tool /device /mold making industries.

Highlights

  • Five axes simultaneous machining with rigid swivel rotary table
    • Swivel range of the B-axis -5/ +110°
    • Table load up to 300 kg
    • Large diameter of table bearings for highest precision
  • Tool magazine for short set up and idle times
    • 16/ 30 or 60 tool pocketsSet up of tools during machining
    • Tool length up to 300 mm and max. tool diameter 130 mm with free adjacent pockets in the tool magazine
  • Accuracy
    • Direct path measuring system X/Y/Z (option)
    • Digital drives in all axes
  • Tool magazine for short set up and idle times
    • 16/ 30 or 60 tool pockets
    • Set up of tools during machining
    • Tool length up to 300 mm and max. tool diameter 130 mm with free adjacent pockets in the magazine

DMU 35M CNC milling machine

This milling machine features three automated axes (two horizontal and one vertical) and two manual rotation and inclination axes.

Powered by the Siemens numerical controller. The Siemens 810D numerical controller allows for direct machining via the operating panel or remote control.

Graphical programming support

Programming is possible via G-code or ShopMill, a graphical programming environment, which supports real-time simulation.

Specifications

  • X-travel 350 mm Y-travel 240mm Z-travel 340mm
  • Rotary Axis B-travel – 15⁰/+105⁰
  • Rotary Axis C-travel 360⁰
  • Spindle speed range – 20 - 6300 RPM
  • Feed speeds – 1 - 5000mm/min
  • Rapid traverse – 5m/min
  • Tool Taper – DIN 69871 ISO 40
